Is it possible to create a trigger based on the audio levels? I’m on a Yamaha DM7.
I see the RCP Channel Level variable, but cannot see an option when adding a trigger.
Is it possible to create a trigger based on the audio levels? I’m on a Yamaha DM7.
I see the RCP Channel Level variable, but cannot see an option when adding a trigger.
Should be easy enough.

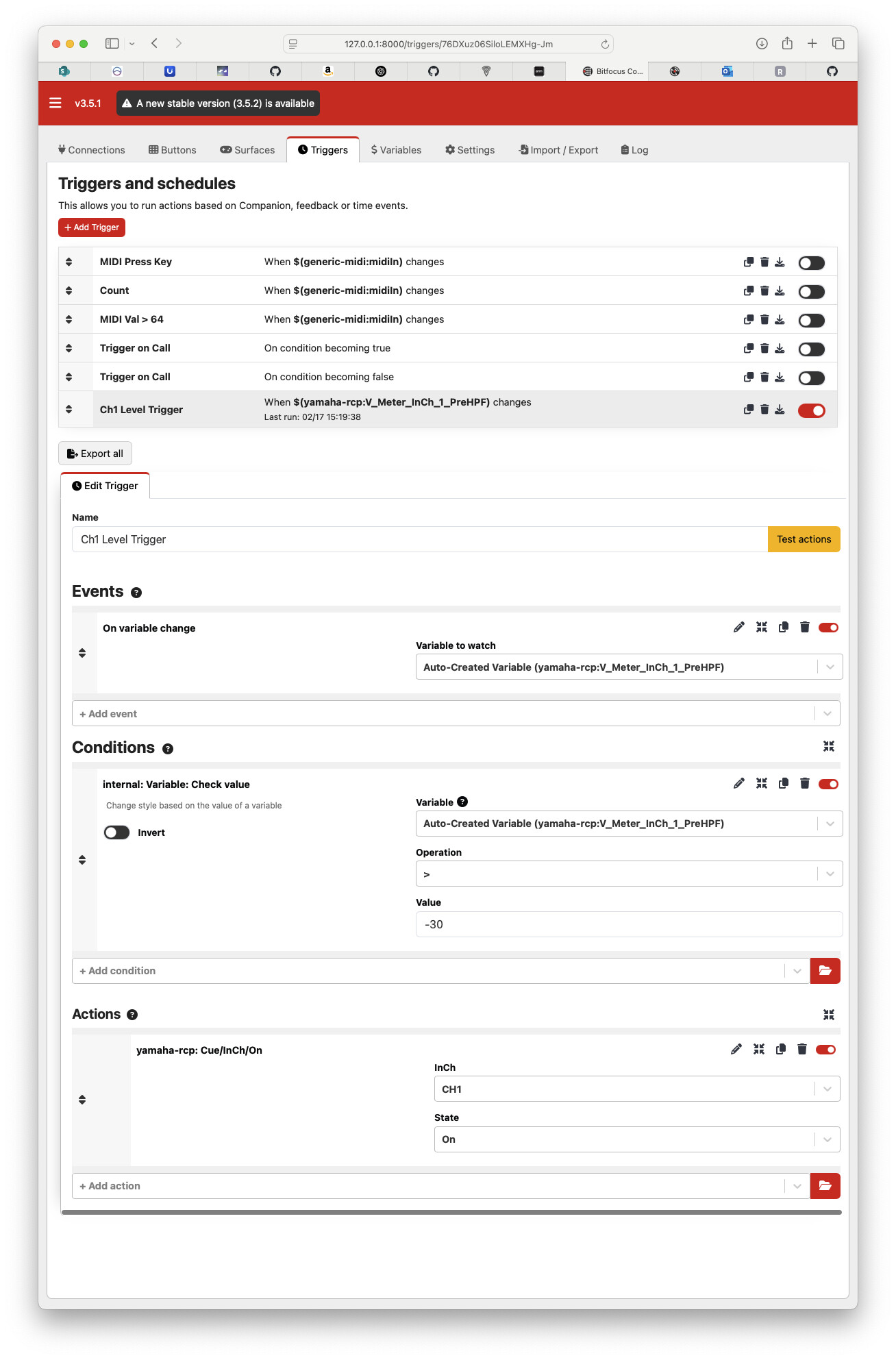

Trigger on variable change, then condition is when variable value is above some amount.
Where are you getting stuck?
Thanks Andy… I think I’m doing something wrong upstream as I don’t have that specific variable in the dropdown.
In the connection setting, which console /Preamp type should be selected?
Oh! You said earlier:
So I thought you had that already.

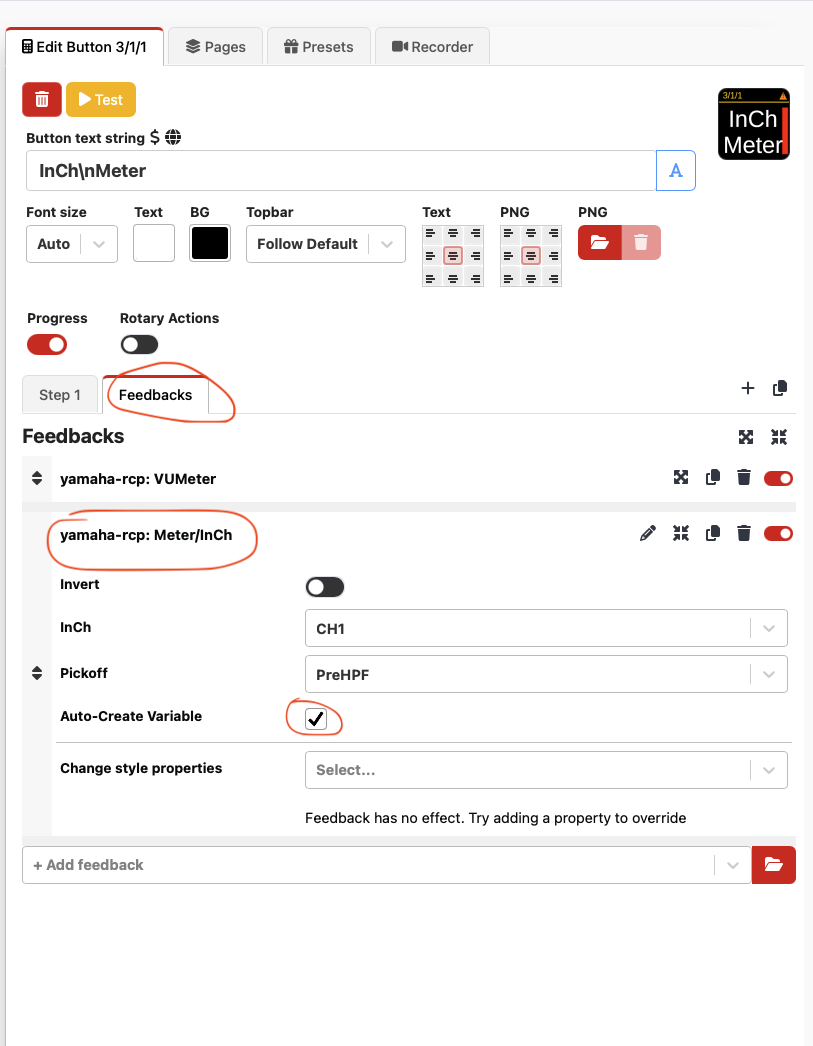

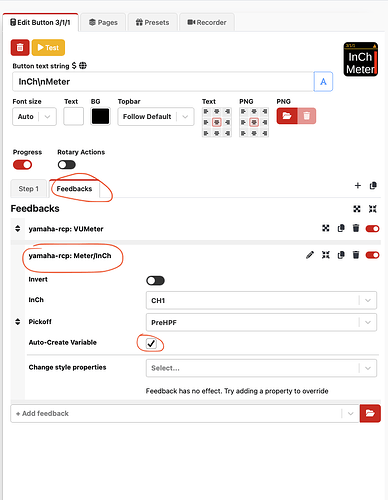

If you don’t see that variable, you would add a feedback for the InCh Meter, and select “Auto-Create Variable”. You will need to have the console connected and running, with “Enable Meters” in the RCP module config turned on.
If you’re using the latest build (3.5.7) there are now Presets that you can just drag to a button, to create the proper variable and to show the meter on the button if you wish.
Fantastic!
I have limited time with the equipment and may have stumbled on the rcp setting.
2 months later… I was able to use it again but I may have ruined the previous settings.
I’ll try again tomorrow when I have access.
I was using a version 3.3.1 ( it was installed last year on my mac), but downloaded 3.5.3+7770 for tomorrow’s reattempt.
Thanks!
It should be whatever console you’re using. If it’s a DM7, then set it to DM7.
