Triggering UDKs

[herr_lehmann]

Is there a way to trigger UDK via OSC or Midi?
I need to trigger a GPIO via a Midi Footswitch (OSC is also possible via Companion)

Thx

[Andy]

Nope! You can only trigger (some of) the actions that the UDK has.

Which console are you controlling?

[oskar]

Hi!

First of all, thanx for you work!

Would ut be possible to controll user define keys on a rivage Console and also get feedback of it’s led status.

I have tryed with the generic osc module in companion but I cant get it to work…

Best regards
Oskar

[Andy]

Thank you for your kind words. Unfortunately that’s not possible until Yamaha adds that command to the RCP protocol.

I wonder though, using the genius lab whether a MIDI note or other message can trigger a genius lab macro to press a UDK?

[oskar]

Yes you can!
But only from the console midi port, not the DSP one…

Iw sent a message to Yamaha, we will se what happens.
In Rivage 7.0 you can now send OSC messages with scene recall.

[Andy]

So you can trigger a UDK from an incoming MIDI message? (via Genius.Lab I assume)
What about an incoming OSC message?
Or a GPI?

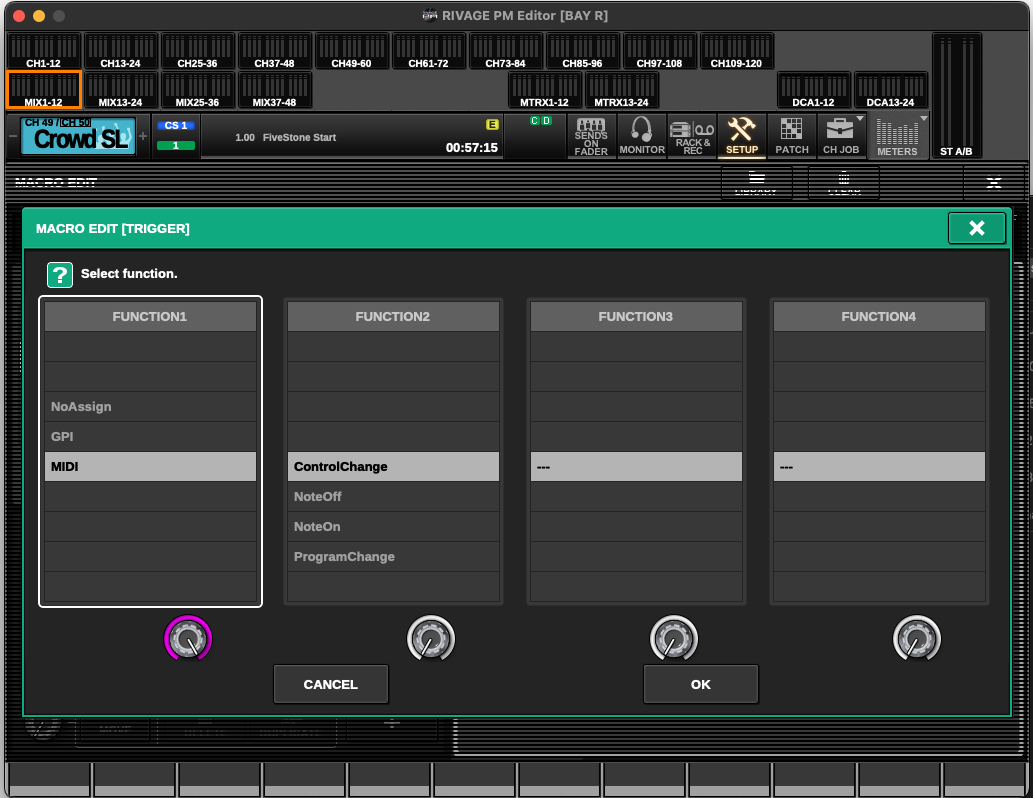

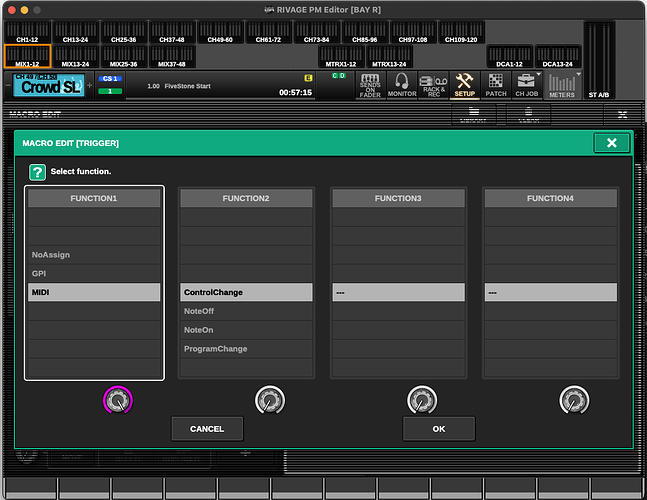

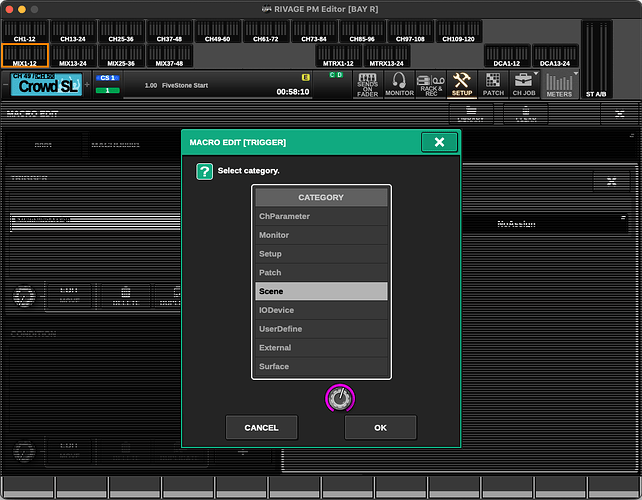

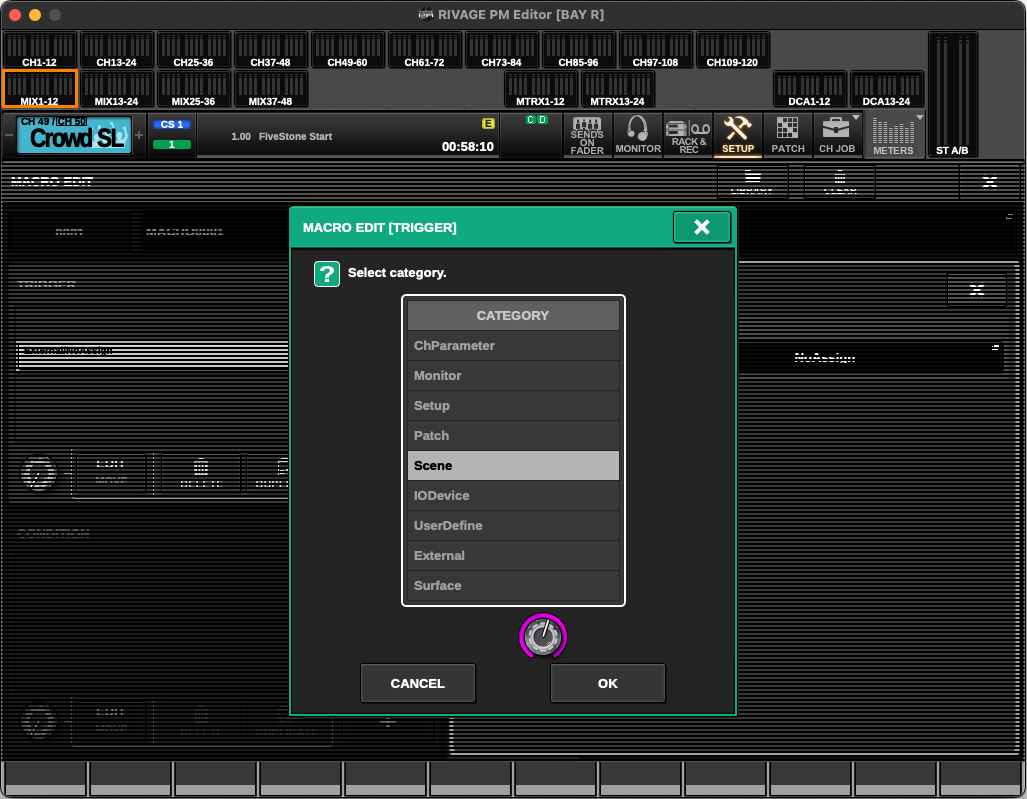

What are all the trigger sources available for a Genius.Lab Macro?

[fsmusic]

Hope I’m not hijacking, but from an “External” perspective, it’s GPI and MIDI. I’m working on a project now to control Rivage screen brightness from a stream deck via companion. I imagine MIDI is the only way this is going to work, but I need to do it over the network.
