Hi Andy, I see that the MyChannel feature is gone in 1.67 but I can’t get the InCh field to take a custom variable. I’m trying the usual $(variable… Am I dong something wrong?
Thanks,
Ade
1 Like
Nope, nothing wrong on your end. I just forgot to add variable parsing to the Channel #.
Just testing but it seems to work…
I’ll write back when there’s a new build with this enabled.
1 Like
New build is up today, which adds the ability to use variables in dropdowns, but also allows SETTING of custom variables via feedback.
I’ll have to do a video on how that’s used, but it will be very powerful!
Excellent!
1 Like
Let me know if you have any trouble with the new build.
1 Like
Variables for inch seems to work well for actions but I couldn’t get it to work for feedback.
Also I couldn’t get feedback to work for InCh/label/Name even for absolute channels. I tried adding all the attributes in the change style properties box.
Thank you for testing that and letting me know.
I realized a small bug with the level feedback - I decided to change the absolute value to a more readable value for variables. if the variable “raw” value is 200 (meaning +2dB) I show it as 2.00. However, I didn’t apply that logic for comparisons.
However, names seems to be working as expected. Did you want to export a page to me that uses name feedback so I can test it here? Or at least a screenshot of the button config.
Once I check that I’ll post up a new build that fixes (I hope) the level variables feedback issue.

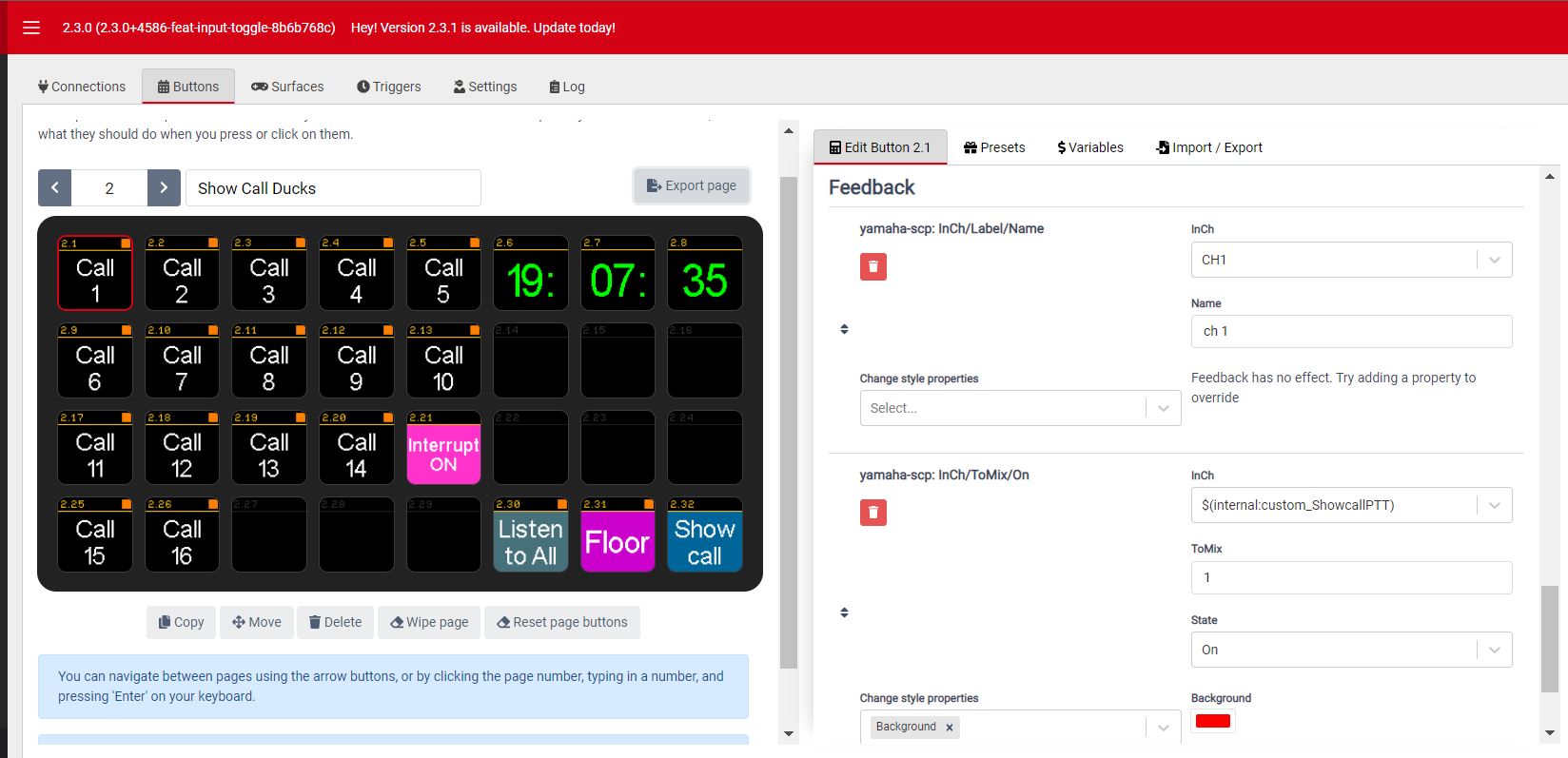

After importing my .config the feedback looked like this
I added the text attribute (and also tried all others) like this
Here’s the page export too
Feedback for Andy.zip (4.8 KB)
Got it. I see the issue(s) and will work on fixing them.
If you can, please let me know the values of the custom variables you’re using.
The one variable I used for InCh on this page $(internal:custom_ShowcallPTT)=27
If it helps, here’s the full config
Full config for Andy.zip (183.1 KB)
Got it. Making the changes and testing. Back soon.
That’s a pretty impressive layout! Lot of cool ideas in there.
I’ve updated your layout, all modules are disabled, but other than that, it should work as expected, unless I made a typo. It’s a lot of copy/paste but now that it’s done, I think you’ll see how it works.
Basically, at some point you need to retrieve the channel names into a custom variable. The way I’m setting custom variables isn’t part of regular companion, and will change in v3. I expect they’ll be a trigger or other way of setting custom variable values…
Basically, replace the $ with the @ to set a value. Only has meaning in feedback, will be ignored on actions. Here’s how that looks:
Then just use the variable as you would normally in the button text. The nice thing is you can now have other text rather than JUST the channel # and combine variables, etc.
Just let me do a build of companion with the fixes and then you can give it a try to see.
Ok, new builds are up. Give that a try.
Here’s your updated (full) config (remember to enable the modules after importing):
Full config for Ade.companionconfig.zip (182.2 KB)
Thanks for this Andy. Hopefully, if I get the time, I can give this a try tomorrow.
1 Like
Hey Ade;
Have you had a chance to try this yet?
I ran out of time unfortunately. Next opportunity is next week now. Will report back as soon as I can.
1 Like
Hey Andy, Variables for InCh functions and feedback all seems to be working well. Companion did seem to crash and recover a couple of times, I think that may have been associated with scene changes but I was making a lot of changes with scenes and companion pages. I’ll see if I can check that out further tomorrow.
That’s a lot of extra functionality with feedback to variables!
Thank you so much for checking that and letting me know.
If you do find anything that causes a crash, make sure to capture the error screen (if there is one) and remember what you did that made it crash. I definitely need to make sure my new changes don’t cause those kinds of problems!
New build up now that includes the latest modules from the latest beta.
